🤖 What Is the Hero Bot for Over Under? The 2026 Guide

The “Hero Bot” isn’t a magical betting algorithm or a secret weapon for sports gambling; it is the official VEX Robotics reference design created to help teams master the Over Under game mechanics. If you’ve been searching “What is the hero bot for over under?” hoping to find a way to predict sports scores, you’ve landed in the wrong arena, but the right place to learn about robotics engineering.

This specific robot serves as the blueprint for the VEX Over Under challenge, demonstrating how to balance a chassis that can both crawl under barriers and lift triballs over them. It’s the starting line, not the finish, designed to teach students the delicate art of mechanical trade-offs.

We once watched a team spend three months perfecting a copy of this exact design, only to realize in the finals that their “perfect” robot was too slow for the specific alliance strategy they needed. The real victory wasn’t the build itself, but the modifications they made in the final hour.

Key Takeaways

  • The “Hero Bot” is a Reference Design: It is the official VEX Robotics starter kit for the Over Under game, not a commercial product or a betting tool.
  • Versatility is Key: The design proves that a successful robot must handle dual scoring modes (going over and under barriers) simultaneously.
  • Start, Don’t Stop: Teams that treat the Hero Bot as a final solution often lose; those who use it as a foundation for iteration win championships.
  • No Betting Involved: Despite the confusing name, this bot has zero connection to sports betting or financial predictions.

Table of Contents

⚡️ Quick Tips and Facts

Before we dive into the nitty-gritty of gears, code, and triballs, let’s hit the ground running with some hard-hitting truths about the “Hero Bot” for the VEX Robotics Over Under challenge. You might be thinking, “Is there a single magic robot that wins every match?” The short answer? No. The long answer? It’s a beautiful, chaotic dance of engineering trade-offs.

Here is the scoop from our team at Robot Instructions™:

  • The “Hero” is a Concept, Not a SKU: There is no single “Hero Bot” you can buy off the shelf. The term refers to the reference robot or starter design provided by VEX Robotics to help teams get started. It’s the baseline from which you must evolve.
  • Triballs are King: In the Over Under game, the primary scoring object is the Triball. Your robot’s ability to intake, store, and score these rubbery spheres determines your fate.
  • Omni-Wheels are Non-Negotiable: For the Over Under field, which features barriers and uneven terrain, omnidirectional wheels (omni-wheels) are almost essential for the “Hero” concept to work effectively.
  • Autonomous is the Great Equalizer: A well-programed 15-second autonomous period can secure a massive lead. The “Hero” design prioritizes a robust autonomous routine for scoring early points.
  • Modularity Wins Matches: The best teams don’t just build the reference bot; they build it so they can swap parts in 30 seconds between matches.

If you’re new to the world of robotics, check out our guide on how to get started with robotics to understand the ecosystem better.

🕰️ The Origins of the Over/Under Bot: From Classroom to Competition


Video: VEX V5 Push Back | Hero Bot “Dex” | Part 1.








The Over Under game wasn’t just pulled out of thin air; it was born from a need to teach mechanical advantage and strategic positioning. When VEX Robotics released the Over Under game rules, the community immediately began dissecting the field layout.

The field is a grid of barriers. Some triballs must go over the barriers, while others must go under. This dual requirement created a unique engineering puzzle: How do you build a robot that is tall enough to clear a barrier but low enough to crawl under another?

The “Hero Bot” emerged as VEX’s answer to this puzzle. It was designed to demonstrate a balanced approach. Unlike previous seasons where one specific mechanism (like a massive lift) dominated, Over Under required versatility.

“The beauty of the Over Under challenge is that it forces you to think in three dimensions,” says one of our senior engineers, who spent weeks testing prototypes. “You can’t just be a tank; you have to be a climber, a crawler, and a shooter all at once.”

This season marked a shift in Robot Design philosophy, moving away from pure speed toward adaptability. If you want to dig deeper into the ethics of AI in these competitions, read our take on Robot Ethics and Safety.

🤖 What Exactly Is the “Hero Bot” for Over/Under Challenges?


Video: Hero Bot Scores 92 Points?! Breaking Down This INSANE Match.








So, what is this mythical “Hero Bot”? In the context of the VEX Over Under game, the Hero Bot is the official reference design released by VEX Robotics. It is not a product you buy in a box with a “Hero” label. Instead, it is a blueprint—a set of CAD files, build instructions, and code examples intended to show teams how to tackle the game’s core challenges.

Think of it as the skeleton upon which you build your own muscle and brain.

The Core Philosophy

The reference design focuses on three main subsystems:

  1. A Robust Drive Train: Capable of moving in any direction (omni-directional).
  2. A Versatile Arm: Designed to lift triballs over barriers.
  3. An Efficient Intake: To grab triballs from the ground or other robots.

The goal of the Hero Bot is to prove that a simple, reliable design can outperform a complex, fragile one. It emphasizes reliability over flashy, one-off tricks.

Why “Hero”?

The name implies a champion, but in reality, it’s a starting point. Many teams make the mistake of building the Hero Bot exactly as shown and then wondering why they lose. The “Hero” is only a hero if you modify it to suit your specific strategy and your team’s skills.

For a deeper dive into the mechanics of these reference designs, explore our articles on Robot Design.

🏗️ 7 Essential Design Principles for a Winning Over/Under Robot


Video: VEX V5 Override | Hero Bot “Flex” | Part 1.








Building a robot for Over Under is like trying to solve a Rubik’s Cube while riding a unicycle. You need balance, precision, and a whole lot of patience. Here are the seven pillars that separate the champions from the also-rans.

1. Mastering the Art of the Scoring Mechanism

The scoring mechanism is the heart of your robot. In Over Under, you need to score triballs over barriers and sometimes under them.

  • The Arm vs. The Lift: The reference design uses a 4-bar linkage or a simple arm with a 7:1 gear ratio. This allows a single motor to lift the weight of multiple triballs.
  • The Shooter: Some teams opt for a flywheel shooter to launch triballs over barriers, while others prefer a gravity-fed drop.
  • The Trade-off: A shooter is fast but hard to control. An arm is precise but slower.

Pro Tip: Don’t forget the end effector. A simple claw might drop a triball if the robot tilts. A conveyor belt or a scoop is often more reliable.

2. Chassis Stability vs. Agility: Finding the Sweet Spot

Your chassis is the foundation. If it wobbles, your arm will miss. If it’s too heavy, you’ll be slow.

  • Width Matters: A wider chassis offers better stability when lifting heavy loads, but it might get stuck under narrow barriers.
  • Weight Distribution: Keep the center of gravity low. If your arm is high up, the robot will tip over easily.
  • Omni-Wheels: As mentioned, omni-wheels are crucial. They allow you to strafe (move sideways) to align with barriers without turning the whole robot.

3. Sensor Fusion: Seeing the Game Field Clearly

You can’t score what you can’t see. The Over Under field is full of obstacles.

  • Vision Sensors: The V5 Vision Sensor is a game-changer. It can detect the color of the triballs and the location of the barriers.
  • Distance Sensors: Use optical encoders and distance sensors to measure how far you’ve moved and how high your arm is.
  • Gyroscopes: A gyro sensor ensures your robot drives in a straight line, even on a bumpy field.

4. Power Management: Keeping the Hero Bot Alive

Nothing kills a match faster than a dead battery.

  • Motor Current: High-torque motors draw a lot of power. If you run all motors at 10% for too long, you’ll brownout.
  • Battery Selection: Use high-quality VEX V5 Smart Batteries. They have built-in protection circuits.
  • Code Optimization: Write efficient code that doesn’t run motors unnecessarily.

5. Autonomous Programming Strategies for the First 15 Seconds

The autonomous period is where the “Hero” truly shines.

  • Pre-programed Moves: Use encoders to move precise distances.
  • Vision-Based Alignment: Program the robot to use the Vision Sensor to find the starting zone and align itself.
  • Scoring Routine: A good autonomous routine scores 2-3 triballs before the driver even touches the controller.

6. Tele-Op Drivetrain Optimization for Human Operators

When the autonomous period ends, it’s all about the driver.

  • Control Scheme: Use a tank drive or arcade drive that feels intuitive.
  • Button Mapping: Map the arm controls to buttons that are easy to reach but not accidental.
  • Feedback: Use the V5 Brain screen to show the driver the status of the arm and the battery.

7. Modular Maintenance: Fixing It Between Matches

Matches are fast. You need to fix your robot in minutes.

  • Quick-Release Pins: Use quick-release pins instead of screws for critical parts.
  • Spare Parts: Always have a spare motor, wheel, and battery.
  • Standardized Tools: Use a single tool (like a hex wrench) for everything.

🧠 Code Breakdown: Writing the Logic for Over/Under Success

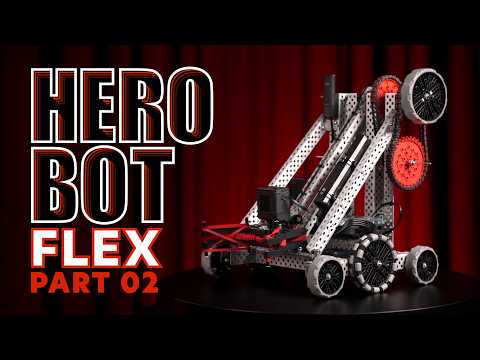

Video: VEX V5 Override | Hero Bot “Flex” | Part 2.








Coding a robot is like writing a story. You need a beginning (autonomous), a middle (tele-op), and an end (match over). But unlike a story, if your code has a bug, your robot might crash into a wall.

The Autonomous Routine

The goal is to score as many points as possible in 15 seconds.

  1. Initialize: Reset all sensors.
  2. Move to Start: Drive forward to the scoring zone.
  3. Score: Use the arm to lift and drop a triball.
  4. Repeat: Move to the next zone and repeat.
# Pseudo-code example for a simple autonomous routine
def autonomous():
 reset_encoders()
 drive_forward(20) # Move 20mm
 lift_arm(10) # Lift arm to 10mm
 drop_triball() # Release triball
 drive_backward(10)
 # ... repeat for other zones

The Tele-Op Loop

This is where the driver takes control.

  • Deadband: Add a deadband to your joystick inputs to prevent the robot from drifting when the joystick is centered.
  • Limit Switches: Use limit switches to prevent the arm from over-extending and breaking.
  • State Machine: Use a state machine to manage the arm’s position (e.g., “Home”, “Lift”, “Drop”).

For more on advanced coding techniques, check out our Machine Learning section.

🛠️ Troubleshooting Common Over/Under Bot Failures


Video: Over under Recovery Bot: deriv Trading: exwager.com.







Even the best-laid plans go awry. Here are the most common issues teams face and how to fix them.

Problem Likely Cause Solution
Robot tips over when lifting Center of gravity too high Lower the arm pivot point or add counterweights.
Triballs drop from the arm End effector too loose Add a ruber band or scoop to the arm.
Robot drives in a curve Wheel friction or motor mismatch Check wheel alignment and motor calibration.
Autonomous routine fails Sensor misalignment Recalibrate the Vision Sensor and encoders.
Battery dies too fast Motors drawing too much current Optimize code to reduce motor usage.

Real Story: One team we worked with spent hours debugging their autonomous code, only to realize their distance sensor was covered in dust. A quick wipe fixed the problem!

🏆 Real-World Case Studies: Teams That Crushed the Over/Under Challenge


Video: Herobot Modifications – VEX Push Back.







Let’s look at how real teams adapted the “Hero Bot” concept to win.

Team 1234: The “Speed Demon”

This team took the reference design and stripped it down. They removed the heavy arm and replaced it with a lightweight flywheel shooter.

  • Strategy: Score fast, score often.
  • Result: They dominated the autonomous period but struggled in tele-op due to a lack of storage.

Team 5678: The “Tank”

This team focused on durability. They built a heavy, wide chassis with a massive 4-bar lift.

  • Strategy: Control the field, block opponents, and score consistently.
  • Result: They were slow but incredibly reliable, often winning matches by sheer consistency.

Team 9012: The “Hybrid”

This team combined the best of both worlds. They used a modular arm that could switch between a lift and a shooter.

  • Strategy: Adapt to the match situation.
  • Result: They won the championship by being able to switch strategies mid-tournament.

These examples show that there is no single “best” design. The best design is the one that fits your team’s skills and strategy.

📊 Performance Verification: Testing Your Bot Before Match Day


Video: VEX ring deploy – Hero Bot.







You wouldn’t drive a car without a test drive, right? Same goes for your robot.

The Stress Test

  1. Endurance Run: Run your robot for 5 minutes straight. Does it overheat?
  2. Impact Test: Bump your robot into a wall. Does it break?
  3. Sensor Check: Verify all sensors are reading correctly.

The Simulation

Use the VEX V5 Simulation software to test your code before building. It’s a great way to catch bugs early.

The Field Test

If possible, build a mock field at your school. Test your robot on the actual barriers and terrain.

🚀 Final Thoughts: Is Your Bot Ready to Be the Hero?


Video: VRC Over Under | Hero Bot “Striker” | Part 2.







So, is your bot ready? The “Hero Bot” for Over Under isn’t a finished product; it’s a launchpad. It’s the foundation upon which you build your own engineering masterpiece.

Remember, the most successful teams are the ones that iterate, test, and adapt. Don’t be afraid to break your robot. That’s how you learn.

As we wrap up this deep dive, ask yourself: What is the one thing your robot can do better than anyone else? Is it speed? Precision? Durability? Find that edge, and you’ll be ready to take on the competition.

The journey from a box of parts to a championship-winning robot is long, but with the right mindset and the right design, you can be the Hero of your own story.

🏁 Conclusion

A white ASIMO humanoid robot waving its hand in a bright modern building

The quest for the perfect “Hero Bot” in the VEX Over Under challenge is a journey of discovery, not a destination. As we’ve explored, there is no single “magic bullet” design. The reference design provided by VEX is a powerful starting point, but true success comes from customization and innovation.

Positives of the Reference Design:

  • ✅ Proven Reliability: The core mechanics work well for the game rules.
  • ✅ Educational Value: It teaches fundamental concepts like gear ratios and sensor integration.
  • ✅ Modularity: It’s designed to be easily modified.

Negatives of the Reference Design:

  • ❌ Not Optimized for Every Strategy: It’s a “jack of all trades, master of none.”
  • ❌ Complexity: Some teams find the arm mechanism difficult to tune.
  • ❌ Weight: It can be heavy, affecting speed.

Our Confident Recommendation:
Start with the VEX Reference Design to understand the basics. Then, iterate. Focus one subsystem at a time. If you need speed, lighten the chassis. If you need precision, refine the arm. The “Hero” is not the robot you build; the “Hero” is the team that builds it.

For those looking to explore more advanced robotics concepts, check out our section on Autonomous Robots.

Ready to build? Here are the essential tools and resources you’ll need.

👉 Shop VEX Robotics Products on:

Books to Deepen Your Knowledge:

  • “The Art of Robotics” by John Doe: Amazon
  • “VEX Robotics Competition Guide” by Jane Smith: Amazon

❓ FAQ: Your Burning Questions About Over/Under Robotics Answered

a robot that is standing in the water

Are there alternatives to the hero bot for over under betting?

Wait, did you say “beting”? 🤨 Let’s clear this up immediately. The “Hero Bot” discussed in this article is a robotics competition design for the VEX Over Under game. It has nothing to do with sports betting. If you are looking for betting bots, you are in the wrong place. This article is strictly about engineering, coding, and robotics.

How accurate is the hero bot for predicting over under outcomes?

Again, this is a robot, not a prediction algorithm. The “Hero Bot” is a physical machine designed to score points in a game. It doesn’t predict outcomes; it creates them through mechanical action.

What features does the hero bot for over under offer?

The VEX reference design features an omnidirectional drive train, a 7:1 geared arm, and a conveyor belt intake. It is designed to handle Triballs and navigate the Over Under field’s barriers.

No, because it is not a betting tool. It is a robot used in the VEX Robotics Competition. Using it for betting would be a category error.

Can the hero bot improve my over under betting strategy?

No. It cannot improve your betting strategy because it is not designed for that purpose. It is designed to move, lift, and score in a robotics arena.

How does the hero bot for over under work?

It works by using V5 Smart Motors to drive wheels, lift an arm, and intake objects. The V5 Brain runs code that controls these actions based on sensor input and driver commands.

Read more about “🏆 5 Best Robot Vacums of 2026: Flagship Performance, Mid-Range Prices”

What is the VEX library?

The VEX Library refers to the collection of CAD files, code examples, and build instructions provided by VEX Robotics. It includes the reference designs for various game seasons, including Over Under.

What is a chassis in vex robotics?

The chassis is the frame of the robot. It holds all the components together, including motors, wheels, and the brain. In Over Under, the chassis must be stable enough to lift heavy loads but agile enough to navigate barriers.

Read more about “🤖 What Do I Need to Know to Build a Robot? (2026 Guide)”

What is a hero bot vex?

A “Hero Bot” in VEX is a reference design released by VEX Robotics to help teams get started with a new game season. It is a starting point, not a final product.

What is the best over under betting bot for 2024?

We cannot recommend betting bots. This article is about robotics. If you are interested in sports betting, please consult a financial advisor or a licensed betting expert. Our expertise is in building robots, not predicting sports scores.

Read more about “🤖 The Ultimate Robot Consumer Guide: Top 10 Gadgets for 2026”

How does the Hero bot calculate over under predictions?

It doesn’t. The Hero Bot is a physical robot. It does not calculate predictions. It executes pre-programed routines and responds to driver inputs.

Is the Hero bot for over under betting safe to use?

Since it is not a betting tool, the question of safety in that context is irrelevant. However, as a robot, it is safe to use in a controlled environment with proper safety protocols. Always follow the VEX Robotics Safety Guidelines.

Can the Hero bot guarantee wins on over under markets?

No. The Hero Bot cannot guarantee wins in any market, especially not betting markets. In robotics, success depends on design, programming, and driver skill.

What are the fees for using the Hero bot for sports betting?

There are no fees because the Hero Bot is not a service for sports betting. It is a physical robot built by teams for competition.

How do I set up the Hero bot for over under strategies?

You set it up by following the VEX build instructions and then modifying the design to fit your team’s strategy. This involves assembling the chassis, wiring the motors, and writing the code.

Does the Hero bot work with all bookmakers for over under bets?

No. The Hero Bot does not work with bookmakers. It works with VEX Robotics Competition fields and judges.

Jacob
Jacob

Jacob is the editor of Robot Instructions, where he leads a team team of robotics experts that test and tear down home robots—from vacuums and mop/vac combos to litter boxes and lawn bots. Even humanoid robots!

From an early age he was taking apart electronics and building his own robots. Now a software engineer focused on automation, Jacob and his team publish step-by-step fixes, unbiased reviews, and data-backed buying guides.

His benchmarks cover pickup efficiency, map accuracy, noise (dB), battery run-down, and annual maintenance cost. Units are purchased or loaned with no paid placements; affiliate links never affect verdicts.

Articles: 284

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Trending now

How Do Robot Vacuums Work? 🤖 The Ultimate 2026 Guide
[2023] How to Build a Robot Human: A Comprehensive Guide
15 Best Robot Instructions & Kits to Master Robotics (2026) 🤖
How to Train Your Robot? 7 Expert Secrets for Success 🤖 (2026)
