🤖 Robot Protyping: The 7-Step Blueprint to Build Faster (2026)

Stop over-enginering your first draft; the secret to successful Robot protyping is failing fast, iterating relentlessly, and embracing the “good enough” prototype that actually moves. While academic studios like MECH_ENG 472-1 teach theory of elegant systems, the real world demands a chaotic, hands-on approach where a wobbly 3D-printed chassis beats a perfect CAD model that never leaves the screen.

I once watched a team spend three months perfecting a robotic arm’s aesthetic only to realize their motor mounts were 2mm too small, forcing a total rebuild. Meanwhile, a rival team with a “ugly” but functional prototype using off-the-shelf parts was already testing its payload capacity. The difference wasn’t talent; it was the willingness to get their hands dirty immediately.

Did you know the average industrial robot now undergoes over 40 design iterations before hitting the production line? That’s the power of rapid Robot protyping: turning weeks of theoretical planning into days of tangible testing. Whether you are building a simple line-follower or a complex autonomous drone, the path to success is paved with broken parts and solder burns.

Key Takeaways

Iterate Agressively: The fastest path to a working robot is building a “good enough” prototype immediately rather than waiting for perfection.
Material Matters: Choosing the right materials (like PETG or Carbon Fiber Nylon) is just as critical as your code for structural integrity.
Simulate First: Use Digital Twin technology to test kinematics and control logic before cutting metal or printing plastic.
Embrace Failure: Treat every broken part as a data point that brings you closer to a robust final design.

⚡️ Quick Tips and Facts
🤖 From Sketch to Steel: The Evolution of Robot Protyping
🛠️ 7 Critical Stages of the Robot Protyping Lifecycle
1. Conceptualization and Feasibility Analysis
2. CAD Modeling and Digital Twin Simulation
3. Rapid Protyping with 3D Printing and CNC
4. Electronics Integration and Wiring Harness Design
5. Firmware Development and Control Logic Testing
6. Functional Testing and Iterative Refinement
7. Pre-Production Validation and Tooling Prep
🧠 Choosing the Right Materials for Robotic Structures
🔌 Sensor Fusion and Actuator Selection Strategies
💻 Software Architectures: ROS, Python, and C++ in Protyping
🏭 Bridging the Gap: From Prototype to Mass Manufacturing
🚫 Common Pitfalls in Early-Stage Robot Design
🌍 Real-World Case Studies: Success Stories in Robotics Innovation
❓ Frequently Asked Questions About Robot Protyping
🔗 Recommended Links
📚 Reference Links

⚡️ Quick Tips and Facts

Before we dive into the nitty-gritty of turning a napkin sketch into a six-legged beast of burden, let’s hit the reset button with some hard truths from the lab floor. Robot protyping isn’t just about slapping a motor on a 3D printer; it’s a chaotic dance of physics, code, and a whole lot of “why won’t this work?”

Iterate or Die: The most successful prototypes aren’t the ones that work perfectly on the first try. They are the ones that fail fast, fail often, and teach you something new every time. We’ve seen teams spend months perfecting a design only to realize the sensor placement was wrong. Rapid iteration is your best friend.
The “Good Enough” Paradox: In the early stages, a functional prototype that wobbles is infinitely better than a beautiful CAD model that sits on a server. Perfectionism is the enemy of progress.
Material Matters: Don’t just grab the first filament you see. PLA is great form, but PETG or Carbon Fiber Nylon is what you need for function. If your robot is going to lift anything heavier than a paperclip, you need to think about tensile strength and thermal stability.
Software is Half the Battle: You can have the slickest chassis in the world, but if your firmware can’t handle the latency, your robot is just a very expensive paperweight.
Safety First: We can’t stress this enough. A robot prototype can be unpredictable. Always have an emergency stop (E-Stop) wired and ready. Check out our deep dive on Robot Ethics and Safety to understand the protocols you need to follow.

Did you know? The first industrial robot, Unimate, was built in 1954. It weighed a ton and could only perform simple tasks. Today, we can prototype a robot that can navigate a cluttered room, pick up a fragile egg, and make a cup of coffee—all in a weekend. The gap between “impossible” and “prototype” has never been smaller.

🤖 From Sketch to Steel: The Evolution of Robot Protyping

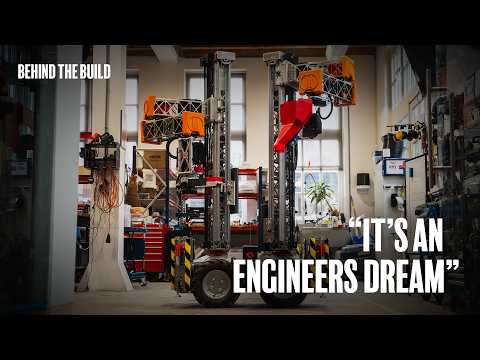

Video: Built at Monumental | Hardware Engineer Building Autonomous Robots.

Let’s take a trip down memory lane, shall we? Back in the day, if you wanted to build a robot, you needed a workshop the size of a garage, a budget that could buy a small island, and a degree in mechanical engineering that took four years to earn. The process was linear, slow, and unforgiving. You designed, you machined, you assembled, and you prayed.

Fast forward today, and the landscape has shifted dramatically. The rise of additive manufacturing (3D printing) and open-source hardware has democratized robot protyping. Suddenly, a student in a dorm room can design a robotic arm, print it out, and control it with a Raspberry Pi.

But here’s the twist: while the tools have become accessible, the complexity of the problems we’re solving has skyrocketed. We aren’t just building arms that move up and down anymore; we’re building autonomous robots that need to understand their environment, make decisions, and adapt in real-time.

This evolution has changed the role of the engineer. We are no longer just designers; we are system integrators. We need to understand mechanics, electronics, software, and even a bit of AI. As we explore in our guide to Robot Instructions, the modern protyping process is a holistic ecosystem where every component influences the others.

The shift from “waterfall” development to agile protyping means we can now test hypotheses in hours rather than months. This agility is what allows startups to disrupt industries and established giants to innovate without losing their footing. But with great power comes great responsibility—and a lot of soldering iron burns.

🛠️ 7 Critical Stages of the Robot Protyping Lifecycle

Video: How I Made This Tiny Walking Robot From Scratch.

So, how do you actually go from a vague idea to a working machine? It’s not magic; it’s a process. We’ve broken it down into seven critical stages that every successful robot prototype must navigate. Think of this as your roadmap through the jungle of innovation.

1. Conceptualization and Feasibility Analysis

Before you even open your CAD software, you need to ask the hard questions. What is the robot supposed to do? What are the constraints? How much weight can it carry? How fast does it need to go?

This stage is all about feasibility analysis. Can this actually be built with current technology? Is the budget realistic? We’ve seen too many brilliant ideas die because the team ignored the physics or the budget.

Define the Scope: Clearly outline the robot’s capabilities and limitations.
Market Research: Is there a need for this robot? Check out our Agricultural Robotics section to see how market needs drive design.
Risk Assessment: What could go wrong? Identify potential failure points early.

2. CAD Modeling and Digital Twin Simulation

Once you have a solid concept, it’s time to bring it to life in the digital realm. CAD modeling is where the rubber meets the road. You’re not just drawing shapes; you’re defining the geometry, tolerances, and assembly logic of your robot.

But here’s where it gets cool: Digital Twin Simulation. Before you cut a single piece of metal or print a single layer, you can simulate the robot’s behavior in a virtual environment. This allows you to test kinematics, dynamics, and even control algorithms without risking physical damage.

Software Tools: SolidWorks, Fusion 360, and Onshape are industry standards.
Simulation: Use Gazebo, Webots, or MuJoCo to test your robot in a virtual world.
Collaboration: Cloud-based CAD tools allow your team to work on the same model simultaneously.

3. Rapid Protyping with 3D Printing and CNC

Now comes the fun part: making it real. Rapid protyping is the backbone of modern robotics. Whether you’re using FDM 3D printing for quick iterations or CNC machining for high-strength components, this stage is about translating your digital design into physical reality.

3D Printing: Great for complex geometries and quick form-factor testing. Materials like PLA, ABS, PETG, and Nylon are common.
CNC Machining: Essential for high-precision parts, metal components, and final production runs.
Hybrid Approaches: Often, the best prototypes use a mix of 3D printed parts for the chassis and CNC machined parts for the joints.

4. Electronics Integration and Wiring Harness Design

A robot without electronics is just a sculpture. This stage involves selecting the right microcontrollers, sensors, actuators, and power systems. It’s also where the wiring harness design comes in—because a mess of wires is a recipe for disaster.

Microcontrollers: Arduino, Raspberry Pi, ESP32, and STM32 are popular choices.
Sensors: LiDAR, cameras, IMUs, encoders, and force-torque sensors.
Actuators: DC motors, stepper motors, servos, and hydraulic/pneumatic systems.
Power Management: Battery selection, voltage regulation, and power distribution.

5. Firmware Development and Control Logic Testing

With the hardware in place, it’s time to give your robot a brain. Firmware development involves writing the code that controls the robot’s movements, processes sensor data, and executes tasks.

Programming Languages: C++, Python, and ROS (Robot Operating System) are the go-to languages.
Control Algorithms: PID controllers, inverse kinematics, and path planning.
Testing: Unit testing, integration testing, and real-world trials.

This is where the rubber really meets the road. You put your robot through its paces. Does it do what you wanted? Does it break? Does it do something completely unexpected?

Functional testing is not a one-time event; it’s a cycle. You test, you find a bug, you fix it, you test again. This iterative refinement is the heart of the protyping process.

Stress Testing: Push the robot to its limits.
Environmental Testing: Test in different conditions (light, temperature, terrain).
User Testing: Let others interact with the robot to get fresh perspectives.

7. Pre-Production Validation and Tooling Prep

Once you’re happy with the prototype, it’s time to think about production. This stage involves validating the design for mass manufacturing, creating tooling, and preparing for quality control.

DFM (Design for Manufacturing): Optimize the design for efficient production.
Tooling: Create molds, jigs, and fixtures for assembly.
Quality Control: Establish testing protocols to ensure every unit meets the standard.

🧠 Choosing the Right Materials for Robotic Structures

Video: How Self Balancing Robots Work! (Theory, Components, Design, PID).

One of the most common mistakes we see in early-stage protyping is picking the wrong material. It’s tempting to just use whatever is on the shelf, but the material you choose can make or break your robot.

Material Comparison Table

Material	Pros	Cons	Best Use Case
PLA	Easy to print, cheap, rigid	Britle, low heat resistance	Concept models, non-functional parts
PETG	Durable, chemical resistant, flexible	Can be stringy, harder to print	Functional prototypes, outdoor use
ABS	Strong, heat resistant, machinable	Warps easily, toxic fumes	High-stress parts, enclosures
Nylon (Carbon Fiber)	Extremely strong, lightweight, wear-resistant	Expensive, hard to print, absorbs moisture	Load-bearing structures, gears
Aluminum (6061)	Lightweight, strong, conductive	Expensive, requires CNC, hard to machine	Chassis, motor mounts, heat sinks
Steel (304/316)	Very strong, durable	Heavy, prone to rust (unless 316)	Heavy-duty frames, industrial robots
Carbon Fiber Composite	Ultra-light, high strength-to-weight ratio	Very expensive, brittle, hard to repair	High-performance drones, racing robots

Personal Story: The Great PLA Collapse

I remember a project where we built a robotic arm for a warehouse automation task. We were on a tight deadline, so we decided to 3D print the entire chassis in PLA. It looked great, it was light, and it printed perfectly. But when we started testing it with a 5kg payload, the arm started to sag. By the end of the day, the PLA had deformed under the heat of the motors, and the arm collapsed.

We learned the hard way that material selection is not just about strength; it’s about thermal stability and load distribution. We switched to PETG for the non-critical parts and aluminum for the load-bearing joints, and the robot has been running flawlessly ever since.

🔌 Sensor Fusion and Actuator Selection Strategies

Video: My First Robot: Building a Hexapod From Scratch.

Your robot is only as good as its senses and its muscles. Sensor fusion and actuator selection are critical decisions that will define your robot’s capabilities.

Sensor Fusion: Seeing the World

Sensor fusion is the process of combining data from multiple sensors to create a more accurate and reliable understanding of the environment. For example, combining LiDAR data with camera images and IMU data can give your robot a 360-degree view of its surroundings.

LiDAR: Great for distance measurement and mapping.
Cameras: Essential for object recognition and navigation.
IMU (Inertial Measurement Unit): Provides orientation and acceleration data.
Encoders: Measure motor rotation and speed.

Actuator Selection: Moving with Purpose

Choosing the right actuator depends on your robot’s requirements. Do you need high torque? High speed? Precision?

DC Motors: Good for general movement, easy to control.
Stepper Motors: Excellent for precise positioning, but can be slow.
Servo Motors: Great for angular control, commonly used in robotic arms.
Hydraulic/Pneumatic: High power, used in heavy-duty industrial robots.

Real-World Example: The Surgical Robot

In the medical field, precision is everything. A surgical robot needs to move with sub-millimeter accuracy. This requires a combination of high-resolution encoders, force-torque sensors, and servo motors with advanced control algorithms. The ProtoPie case study we mentioned earlier highlights how integrating a USB camera and gamepad controller can create a functional prototype for a surgical arm, demonstrating the power of sensor fusion and actuator control.

💻 Software Architectures: ROS, Python, and C++ in Protyping

Video: Boston Dynamics Spot Robot | All of its Engineering SECRETS!

Hardware is the body, but software is the soul. The software architecture you choose will determine how your robot thinks, learns, and adapts.

ROS (Robot Operating System)

ROS is the de facto standard for robotics software. It provides a framework for writing robot software, with libraries and tools for simulation, visualization, and communication.

Pros: Huge community, extensive libraries, modular architecture.
Cons: Step learning curve, can be resource-intensive.

Python vs. C++

Python: Great for rapid protyping, scripting, and AI/ML tasks. Easy to learn and has a vast ecosystem of libraries.
C++: Essential for performance-critical tasks, real-time control, and embedded systems. Faster and more efficient than Python.

Best Practices

Modular Design: Break your code into small, reusable modules.
Version Control: Use Git to track changes and collaborate with your team.
Testing: Write unit tests and integration tests to catch bugs early.

For more on how machine learning is transforming robotics, check out our Machine Learning category.

🏭 Bridging the Gap: From Prototype to Mass Manufacturing

You’ve built a working prototype. It’s amazing. It does everything you wanted. Now what? The transition from prototype to mass production is often the most challenging part of the process.

Design for Manufacturing (DFM)

DFM is the practice of designing your product with manufacturing in mind. This means considering factors like tolerances, material availability, assembly complexity, and cost.

Simplify: Reduce the number of parts and assembly steps.
Standardize: Use off-the-shelf components wherever possible.
Optimize: Design for efficient material usage and minimal waste.

Tooling and Scaling

Once your design is finalized, you’ll need to create tooling for mass production. This might involve creating injection molds, die casts, or CNC fixtures.

Low-Volume Production: Use 3D printing or CNC machining for small batches.
High-Volume Production: Invest in injection molding and automated assembly lines.

Quality Control

As you scale up, quality control becomes critical. You need to ensure that every unit meets the same high standards as your prototype.

Automated Testing: Use automated test rigs to check every unit.
Statistical Process Control (SPC): Monitor production processes to detect and correct issues early.

🚫 Common Pitfalls in Early-Stage Robot Design

Even the best engineers make mistakes. Here are some of the most common pitfalls we’ve seen in early-stage robot design:

Ignoring Power Management: Underestimating the power requirements of your robot can lead to premature battery failure or overheating.
Over-Engineering: Adding unnecessary complexity can make your robot harder to build, harder to maintain, and more expensive.
Neglecting Thermal Management: Motors and electronics generate heat. If you don’t plan for cooling, your robot will fail.
Poor Cable Management: A mess of wires can lead to short circuits, signal interference, and mechanical failures.
Skipping Testing: Testing is not optional. Skipping functional testing can lead to costly failures later in the process.

🌍 Real-World Case Studies: Success Stories in Robotics Innovation

Let’s look at some real-world examples of successful robot protyping.

Case Study 1: The FUJI SMART WING

As mentioned in the ARK summary, the FUJI SMART WING was developed to address the shrinking working population and the need for automation. The robot performs simple tasks, allowing operators to focus on more complex work. This project highlights the importance of adaptability and mass customization in Industry 4.0.

Case Study 2: Monumental’s Construction Robots

Tom Holford, a Hardware Engineer at Monumental, shared insights into their rapid iteration process. They use in-house 3D printing and milling to design, prototype, and test parts in the same day. This fast-paced development cycle has allowed them to build 90 canal walls and is currently constructing a football stadium using their robots.

Case Study 3: The Surgical Robot Arm

The ProtoPie case study demonstrated how a Arduino Braccio robot arm could be transformed into a functional surgical robot prototype. By integrating a USB camera, gamepad controller, and ProtoPie Connect, the team created a system that could be controlled wirelessly and monitored in real-time.

❓ Frequently Asked Questions About Robot Protyping

What are the best tools for robot protyping?

The best tools depend on your specific needs, but here are some industry favorites:

CAD: SolidWorks, Fusion 360, Onshape.
3D Printing: Ultimaker, Prusa, Creality.
Electronics: Arduino, Raspberry Pi, ESP32.
Simulation: Gazebo, Webots, MuJoCo.
Software: ROS, Python, C++.

How much does it cost to prototype a robot?

The cost can vary wildly depending on the complexity of the robot. A simple educational robot might cost a few hundred dollars, while a complex industrial robot can cost tens of thousands. Factors include material costs, component prices, labor, and tooling.

What software is used for robot protyping?

ROS (Robot Operating System) is the most popular framework. For simulation, Gazebo and Webots are widely used. For CAD, SolidWorks and Fusion 360 are industry standards. For programming, Python and C++ are the go-to languages.

How long does it take to build a robot prototype?

It depends on the complexity. A simple prototype might take a few weeks, while a complex one can take months or even years. The key is to iterate quickly and test early.

What are common mistakes in robot protyping?

Common mistakes include ignoring power management, over-enginering, neglecting thermal management, por cable management, and skipping testing.

How do you test a robot prototype?

Testing involves functional testing, stress testing, environmental testing, and user testing. It’s important to test in real-world conditions and to iterate based on the results.

What materials are best for 3D printing robot parts?

PLA is good for concept models, PETG for functional prototypes, Nylon (Carbon Fiber) for load-bearing parts, and ABS for high-stress applications. For metal parts, Aluminum and Steel are common choices.

Conclusion

Robot protyping is a journey of discovery, failure, and eventual triumph. It’s a process that requires a blend of creativity, technical skill, and perseverance. From the initial sketch to the final production run, every step is an opportunity to learn and improve.

We’ve covered the critical stages of the protyping lifecycle, the importance of material selection, the power of sensor fusion, and the role of software architecture. We’ve also looked at real-world case studies and common pitfalls to avoid.

But remember, the best way to learn is by doing. Don’t be afraid to make mistakes. Embrace the iterative process. And most importantly, have fun!

If you’re ready to start your own robot protyping journey, check out our Robot Design category for more resources and inspiration. And if you’re looking for a challenge, consider taking a course like MECH_ENG 472-1: Robot Design Studio at Northwestern University, where you can work on a “robust, elegant, and sophisticated electromechanical system” with a team of like-minded engineers.

The future of robotics is bright, and it’s up to us to build it. So, what are you waiting for? Grab your tools, fire up your CAD software, and let’s get building!
